How to set up the PXN VD4 W AS Bundle?

The PXN VD4 W AS Bundle includes the VD4 direct drive wheel base, W AS steering wheel, PD HM pedals, and mounting accessories. Follow these steps to complete the installation:1. Install the mounting clamp and wheel basePlace the clamp panel on the edge of your desk and tighten it securely.Align the VD4 wheel base mounting plate with the clamp mounting holes and fasten the screws.Adjust the mounting angle according to your preferred driving position.2. Install the W AS steering wheelAlign the 6/4 steel beads on the W AS quick-release hub with the matching grooves on the VD4 wheel base.Press the orange locking mechanism toward the wheel.Push the wheel fully into the base, then release the mechanism to lock the quick release.Pull the wheel backward to confirm it's securely attached.3. Install the PD HM pedalsConnect the throttle module and brake module using the crystal head cable.Secure the pedal set to the pedal board using the included KM4×10mm hex socket screws and M4 hexagonal wrench.Connect the pedal set to the PC using the USB-B cable.4. Connect the VD4 wheel base to PCConnect the power cable to the power adapter and plug it into the DC IN port on the wheel base.Connect the USB-C end of the PC cable to the base and the USB end to your computer.Press the power button to turn on the wheel base.5. Calibrate and test the setupThe W AS steering wheel will automatically self-calibrate after startup.Press each pedal to its maximum travel distance once to complete pedal calibration.Open Windows Game Controllers to test the wheel and pedal inputs.

Is the PXN VD4 bundle compatible with Xbox?

No. The PXN VD4 sim racing bundle is not compatible with Xbox. It's designed for PC (Windows) use and supports PC racing games.

PXN VD4-Bundle

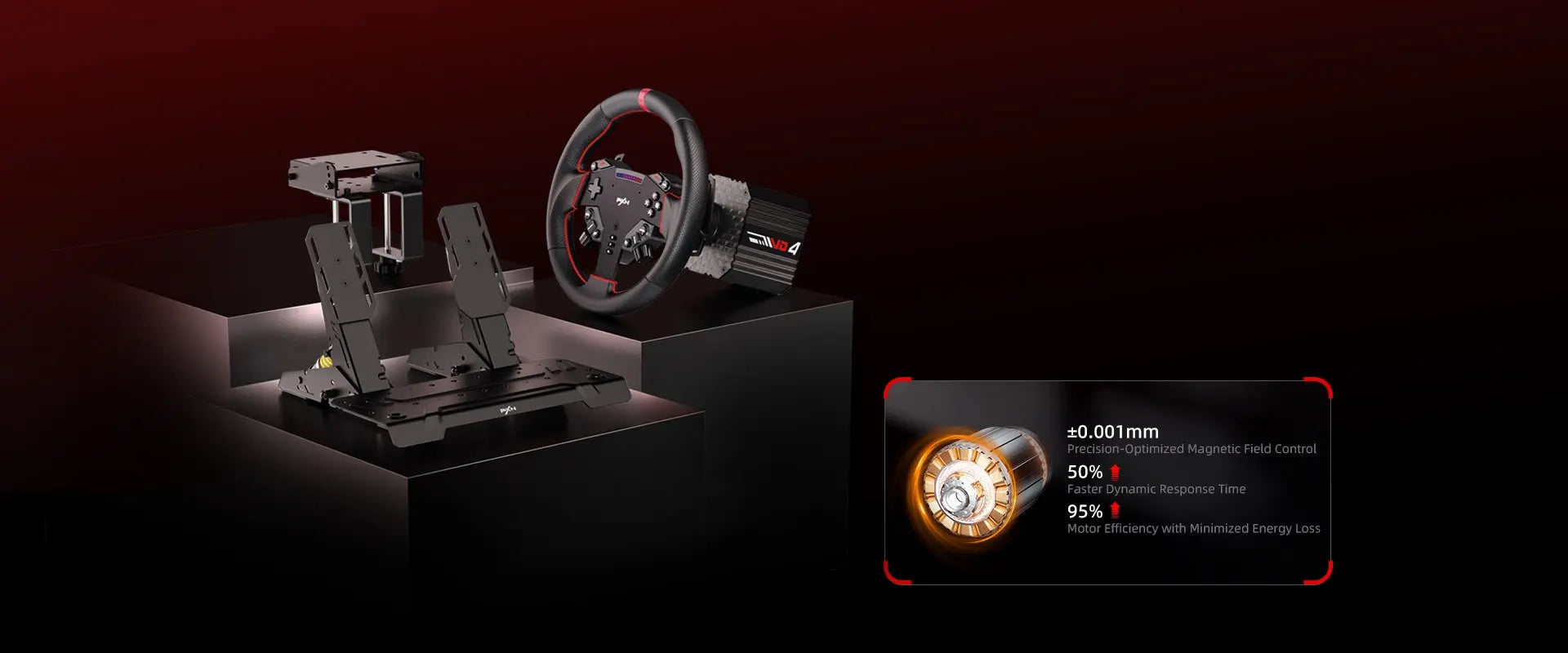

Das PXN VD4 Bundle ist ein Direct-Drive-Sim-Racing-Bundle für Einsteiger-PCs, das ein Lenkrad, eine Wheelbase und Pedale kombiniert, um präzise Steuerung und immersives Feedback für neue Sim-Racer zu bieten.

Mit den PXN-Steuerungstechnologien kombiniert das VD4 eine reaktionsschnelle Force-Feedback-Abstimmung, präzise Bewegungserkennung und aktives Wärmemanagement, um den Rennrealismus zu verbessern. Die Softwareanpassung unterstützt flexible Einstellungen.

Komplettes Bundle mit Lenkrad, Basis, Pedalen, Klemme und Zubehör.
Direct-Drive-Motor mit 4 Nm Drehmoment und 5 Nm Spitzenleistung.
24-Bit-Magnetencoder für reibungslose Lenkeingaben.
PXN Sense+ Algorithmus für dynamisches Force Feedback.
Pedale mit Metall-Hall-Effekt-Sensor für konsistente Steuerung.

€329,00

Free shipping on all orders

Payment & Security

Your payment information is processed securely. We do not store or have access to your credit card details.

Details ansehen

Key Features

280mm PXN W AS Sim Racing Steering Wheel

PXN W AS Race Steering Wheel with Aluminum Alloy Hall Effect Paddle Shifters

PXN PD HM Foot Pedal for Gaming with Hall Effect Sensing Technology

View More on VD4 Bundle

Specifications & Compatibility

Technical Details

Produktmodell	VD4 Bundle
Plattform	PC
Drehmoment	Konstant 4 Nm Spitze 5 Nm
Encoder-Auflösung	24-Bit
Motor	Motor mit extrem geringer Trägheit
Schnellspanner	PXN-Schnellspanner
PC-Software	PXN SimRacing
Material der Schaltwippen	Aluminiumlegierung
Radgröße	280 mm
Radgewicht	1050 g

✔ Ready-to-Race Bundle – Enthält ein 11-Zoll-Lenkrad und ein 2-Pedal-Set aus Metall mit Hall-Effekt-Sensoren
✔ Einstiegs-Direct-Drive-Leistung – 20-poliger Motor mit geringer Trägheit, der 4 Nm (5 Nm Spitze) Drehmoment liefert
✔ 24-Bit-Magnetencoder – Erreichen Sie punktgenaue Lenkpräzision und außergewöhnlich sanfte Steuerung
✔ PXN Sense+ Algorithmus – Optimiert das Force-Feedback dynamisch für unglaublich sanfte, naturgetreue Fahrgefühle
✔ PXN SimRacing Software – Feineinstellungen vornehmen, Tastenbelegungen anpassen und benutzerdefinierte Profile erstellen

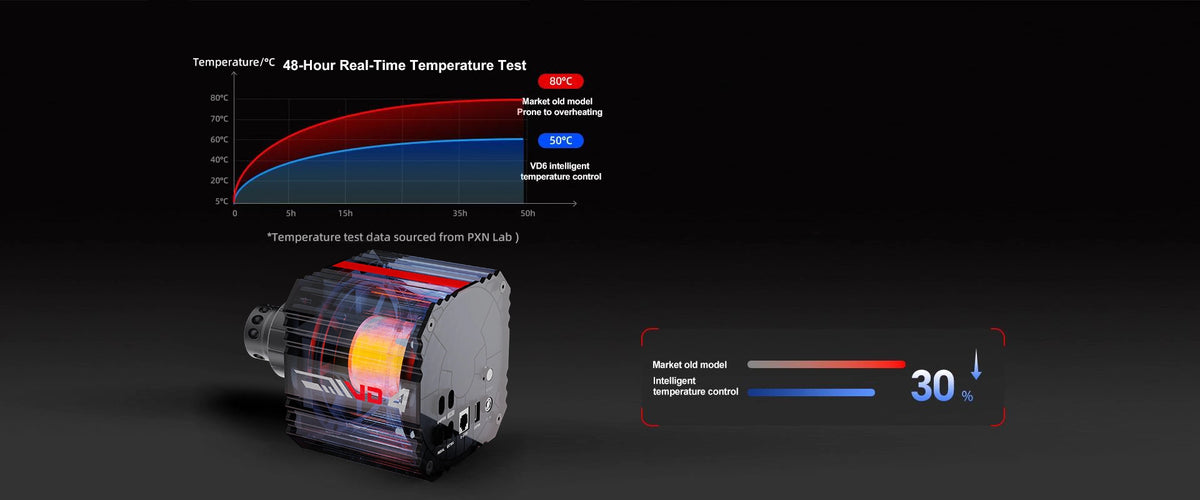

✔ Intelligentes Kühlsystem – Sorgt für konstante Leistung mit aktiver Temperaturregelung bei intensiven Sessions

Compatibility & Mounting

Kompatible Plattform:
PC (Windows)
Kompatible PC-Rennspiele:
Le Mans Ultimate
Assetto Corsa Series
DiRT Rally 2.0
EA WRC
Forza Horizon 5
Forza Motorsport
F1 Series
Project CARS 2
American Truck Simulator
Euro Truck Simulator 2
Kontaktieren Sie unser Kundenservice-Team für weitere kompatible Rennspiele.

What's in the Box

VD4 DD Base
W AS Lenkrad
PD HM Pedale (ohne Kupplung)
Z8 Tischklemme
Netzteil
Kabel
Werkzeugsatz
Benutzerhandbuch

Warranty & Support

Warranty

This product is backed by a 12-month limited warranty, covering defects in materials and workmanship under normal use.

Technical Assistance

Our dedicated support team is available to assist with product setup, operation guidance, and troubleshooting. Contact us via email or phone for prompt service.

Documentation & Downloads

Access essential resources including the user manual, technical specifications, and safety instructions in our online support center.

Replacement Parts & Accessories

We offer a full range of genuine replacement parts, including batteries, chargers, and compatible accessories to ensure long-term performance.

Training & Tutorials

Browse our library of how-to videos and maintenance tips to get the most out of your cordless drill.

User Manual Download

Access the official step-by-step guide for hardware assembly, software configuration, and integration.

FAQs

The PXN VD4 W AS Bundle includes the VD4 direct drive wheel base, W AS steering wheel, PD HM pedals, and mounting accessories. Follow these steps to complete the installation:

1. Install the mounting clamp and wheel base

Place the clamp panel on the edge of your desk and tighten it securely.
Align the VD4 wheel base mounting plate with the clamp mounting holes and fasten the screws.
Adjust the mounting angle according to your preferred driving position.

2. Install the W AS steering wheel

Align the 6/4 steel beads on the W AS quick-release hub with the matching grooves on the VD4 wheel base.
Press the orange locking mechanism toward the wheel.
Push the wheel fully into the base, then release the mechanism to lock the quick release.
Pull the wheel backward to confirm it's securely attached.

3. Install the PD HM pedals

Connect the throttle module and brake module using the crystal head cable.
Secure the pedal set to the pedal board using the included KM4×10mm hex socket screws and M4 hexagonal wrench.
Connect the pedal set to the PC using the USB-B cable.

4. Connect the VD4 wheel base to PC

Connect the power cable to the power adapter and plug it into the DC IN port on the wheel base.
Connect the USB-C end of the PC cable to the base and the USB end to your computer.
Press the power button to turn on the wheel base.

5. Calibrate and test the setup

The W AS steering wheel will automatically self-calibrate after startup.
Press each pedal to its maximum travel distance once to complete pedal calibration.
Open Windows Game Controllers to test the wheel and pedal inputs.

Yes. The PXN VD4 W AS bundle features a direct drive wheel base powered by a servo motor system, providing direct motor-driven force feedback for a more responsive sim racing experience.

The PXN VD4 W AS bundle delivers 4Nm constant torque with 5Nm peak torque through its direct drive motor system, providing detailed force feedback and responsive steering control for sim racing.

Yes. The PXN VD4 W AS bundle includes a table clamp, allowing the wheel base to be mounted securely on a compatible desk or table for desktop sim racing setups.

No. The PXN VD4 sim racing bundle is not compatible with Xbox. It's designed for PC (Windows) use and supports PC racing games.
